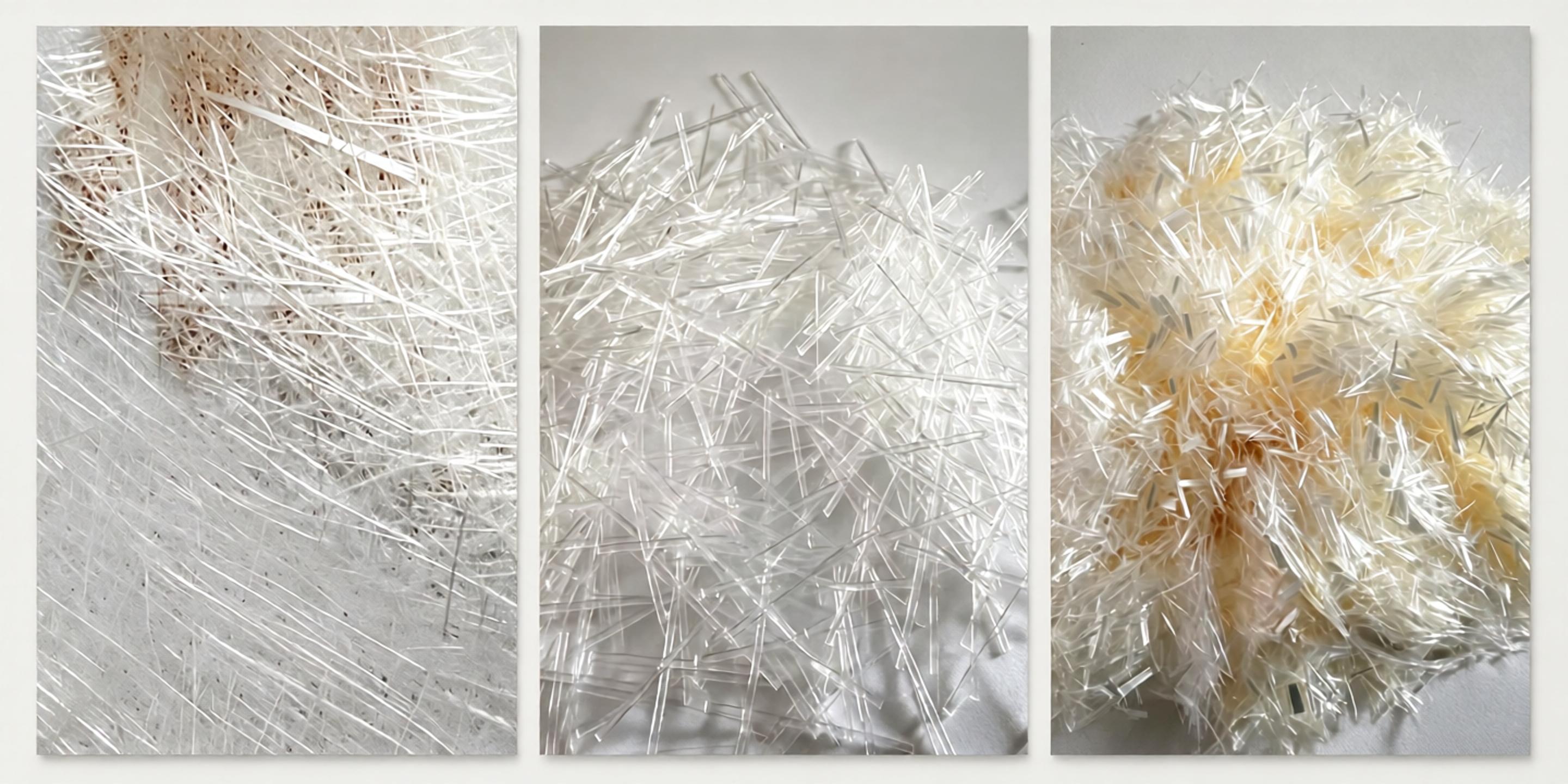

Fiberglass Composite Material
Fiberglass composite includes different‑weight glass fiber cloth and matched curing resin system. After lamination curing, it forms lightweight, high‑strength composite layer, widely used for mold back‑up reinforcement and industrial component manufacturing.
Key Features
- High tensile strength, low weight density
- Good dimensional stability, low shrinkage after curing
- Excellent reinforcement for silicone & PU mould back‑up shell
- Corrosion‑resistant, weather‑resistant performance
- Multiple fabric weight and resin formula options
Typical Applications
- Silicone mold outer back‑up shell reinforcement
- Hand‑lay‑up composite craft parts
- Architecture decoration component production
- Industrial equipment protective housing making
Technical Specifications
| Grade | 1040 | 1270 | 1524 | |||
| Length(m) | Weight(kg) | Length(m) | Weight(kg) | Length(m) | Weight(kg) | |
| EMC200 | 134.6 | 28 | 134.6 | 34 | 134.6 | 41 |
| EMC225 | 119.7 | 28 | 119.7 | 34 | 119.7 | 41 |
| EMC300 | 96.2 | 30 | 96.2 | 37 | 96.2 | 44 |
| EMC375 | 76.9 | 30 | 76.9 | 37 | 79.6 | 44 |
| EMC450 | 79.1 | 37 | 79.1 | 45 | 79.1 | 54 |
| EMC600 | 59.3 | 37 | 59.3 | 45 | 59.3 | 54 |
| EMC900 | 39.5 | 37 | 39.5 | 45 | 39.5 | 54 |
Packaging
- Chopped strand mat is wound on paper tube (ID 90mm), mat roll diameter 265mm. Wrapped with plastic film, then packed in carton boxes. Cartons can be placed vertically or horizontally on pallets.
- Packing type: Pallet packing or small carton packing
Storage & Transportation
- Store in dry and cool place, keep away from rain. Recommended temperature: 15°C ~ 35°C, relative humidity: 35% ~ 65%, stable temperature condition.
Inquiry
Kindly inform your fabric weight requirement and usage scenario. We supply complete cloth‑resin solution, technical datasheet and sample service.
